Equipment Main Function
This product is used for bending straightening the normal carbon steel, low-alloy steel, stainless coil which after annealing, to improving plate shape and its mechanical performance. After stretching and bending the coil strips, to
get better qualified plate shape.
Equipment Component And Feature
Hydraulic coil car and unloading car, Uncoiler, Front and back S roller, Bending roller, Straightener roller, Recoiler, Motor, Electric control, Hydraulic and Lubricate system.

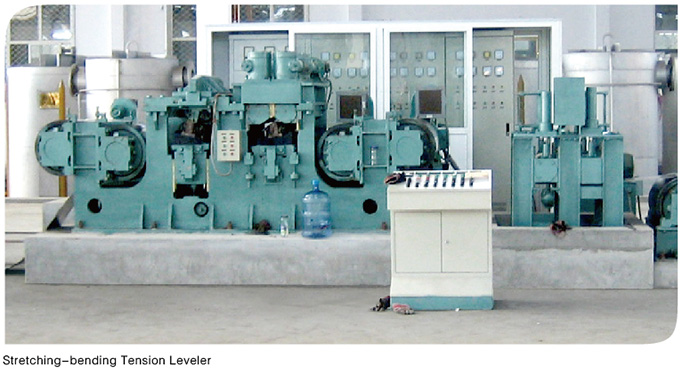

Equipment Photos
Technical Parameter Table
Technical parameter
\Mill model |
650 |
750 |
850 |
1000 |
Material |
Normal carbon steel,stainless steel |
Material thickness(mm) |
0.2-1.2 |
0.3-0.8-1.2 |
0.3-0.8-1.2 |
0.3-1.2 |
Elongation rate % |
0.2-3.0 |
0.2-3.0 |
0.2-3.0 |
0.2-3.0 |
Line speed(m/min) |
150-300 |
150-300 |
150-300 |
150-300 |
Bending(B) and
straightenmg(S) type |
1 Band l S or 2 B and l S |
Hydraulic station
pressure(MPa) |
8 |
8 |
8.5 |
10 |
Main motor |
Z4 series(omit) |
Z4 series(omit) |
Z4 series(omit) |
Z4 series(omit) |
Uncoiler motor |
Z4 series(omit) |
Z4 series(omit) |
Z4 series(omit) |
Z4 series(omit) |
Recoile rmotor |
Z4 series(omit) |
Z4 series(omit) |
Z4 series(omit) |
Z4 series(omit) |
S roller motor |
Z4 series(omit) |
Z4 series(omit) |
Z4 series(omit) |
Z4 series(omit) |
Remark:the model and parameter shown in this table are for reference only. The design and production can be tailor-made according to user's requirements. |
