Four Roll And Six Roll Reversing Rolling Mill

Equipment Main Function

This product is used for reversely rolling the high precision and good quality normal carbon steel, stainless steel strips and low alloy steel.

Equipment Component And Feature

Uncoiler, Hydraulic coil car and unloading car, 5 Roll pinch flattener, Entrance and exit platform, Rolling mill, Left and right recoiler, Joint gear box, Hydraulic AGC and bending roll system, Driving motor, Electric control system, Equipment lubrication and process lubrication system.

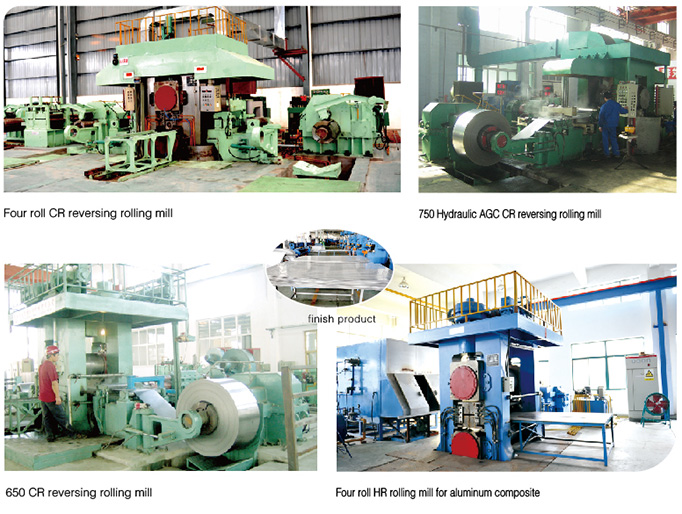

Equipment Photos


Technical Parameter Table

Technical parameter
\Mill model
650 750 850
Material carbon steel and
low alloy steel
carbon steel and
low alloy steel
carbon steel and
low alloy steel
Material thickness(mm) 2.0-3.0 2.0-3.0 2.0-3.0
Material width(mm) 400-550 500-650 600-750
Finish thickness(mm) 0.18-0.5 0.18-0.5 0.18-0.5
Pressing force(KN) 5500 6500 7500
Suppor troll Specification(mm) Ф550×600 Ф650×700 Ф750×820
Middle roll Specification(mm)     Ф300/Ф280×820
Working roll Specification(mm) Ф185/Ф165×650 Ф205/Ф190×750 Ф230/Ф205×850
Driving method Working roll driving Working roll driving Working roll driving
Main motor DC motor DC motor DC motor
Speed reducer Joint gear box Joint gear box Joint gear box
Uncoiler(specifications) Ф508/Ф610×650 Ф508/Ф610×750 Ф610×850
Recoiler(specifications) Ф508×650 Ф508×750 Ф508×850
Rolling speed(m/min) 180-480 240-600 240-600
Uncoiler tension(KN) 30 35 45
Recoiler tension(KN) 10-70 10-80 10-90
Pressing method Mechanical/Hydraulic AGC Mechanical/Hydraulic AGC Mechanical/Hydraulic AGC
DC speed regulator Siemens Siemens Siemens
Electric control Siemens PLC Siemens PLC Siemens PLC

Remark:the model and parameter shown in this table are for reference only. The design and production can be tailor-made according to user's requirements.
