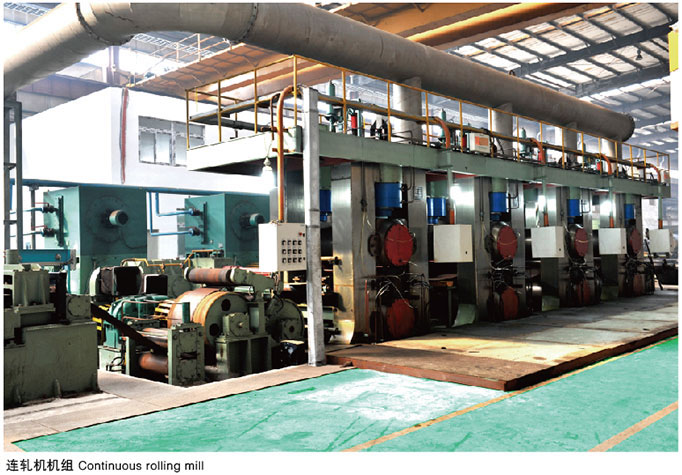

Continuous Rolling Mill

Equipment Main Function This product is used for reversely rolling the high precision and good quality normal carbon steel, stainless steel strips and low alloy steel. Equipment Component And Feature Uncoiler, Hydraulic coil car and unloading car, 5 Roll pinch flattener, Entrance and exit platform, Rolling mill(User can choose the no. of mill for continuous rolling), recoiler, Joint gear box, Hydraulic AGC and bending roll system, Driving motor, Electric control system, Equipment lubrication and process lubrication system. Equipment Photos Technical Parameter Table Technical parameter \Mill model 650 750 850 Material carbon steel and low alloy steel carbon steel and low alloy steel carbon steel and low alloy steel Material thickness(mm) 2.0-3.0 2.0-3.0 2.0-3.0 Material width(mm) 400-550 500-650 600-750 Finish thickness(mm) 0.4-0.6 0.4-0.6 0.4-0.6 Pressing force(KN) 5500 6500 7500 Support roll Specification(mm) Ф550×600 Ф650×700 Ф750×820 Working roll Specification(mm) Ф185×650 Ф225×750 Ф240×850 Mill stands three to six stands three to six stands three to six stands Driving method Working roll driving Main motor DC motor DC motor DC motor Speed reducer Joint gear box Joint gear box Joint gear box Uncoiler(specifications) Ф610×650 Ф610×750 Ф610×850 Recoiler(specifications) Ф508×650 Ф508×750 Ф508×850 Rolling speed(m/min) 240-420 300-420 300-480 Uncoiler loop Disc loop or ground loop Recoiler tension(KN) 0-35 0-45 0-55 Pressing method Mechanical/Hydraulic AGC Mechanical/Hydraulic AGC Mechanical/Hydraulic AGC DC speed regulator Siemens Siemens Siemens Electric control Siemens PLC Siemens PLC Siemens PLC Remark：the model and parameter shown in this table are for reference only. The design and production can be tailor-made according to user's requirements.
