Six Roll CR Reversing Rolling Mill

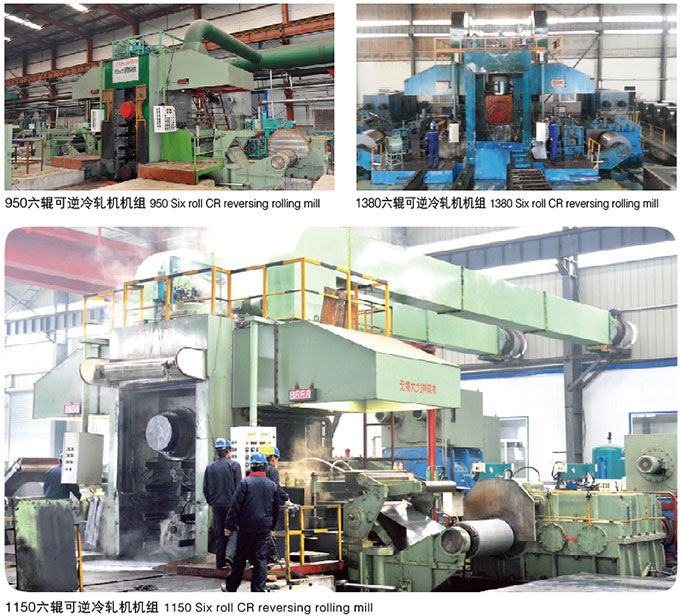

Equipment Main Function This product is used for reversely rolling the high precision and good quality normal carbon steel, stainless steel strips and low alloy steel. Equipment Component And Feature Uncoiler, Hydraulic coil car and unloading car, 5 Roll pinch flattener, Entrance and exit platform, Rolling mill, Left and right recoiler, Joint gear box, Hydraulic AGC and bending roll system, Driving motor, Electric control system, Equipment lubrication and process lubrication system. Equipment Photos Technical Parameter Table Technical parameter \Mill model 950 1150 1380 Material carbon steel and low alloy steel carbon steel and low alloy steel carbon steel and low alloy steel Material thickness(mm) 2.0-3.5 2.0-3.5 2.0-3.5 Material width(mm) 600-850 900-1050 1000-1250 Finish thickness(mm) 0.18-0.6 0.18-0.6 0.20-0.6 Pressing force(KN) 9000 12000 15000 Suppor troll Specification(mm) Ф850×920 Ф1050×1120 Ф1250×1350 Middle roll Specification(mm) Ф350/Ф320×900 Ф380/Ф350×1150 Ф420/Ф380×1380 Working roll Specification(mm) Ф260/Ф235×950 Ф310/Ф280×1150 Ф370/Ф340×1380 Driving method Working roll driving Working roll driving Working roll driving Main motor DC 1500KW×2 DC 1000KW×4 DC 1250KW×4 Speed reducer Joint gear box Joint gear box Joint gear box Uncoiler(specifications) Ф508/Ф610×950 Ф610×1150 Ф610×1380 Recoiler(specifications) Ф508×950 Ф508×1150 Ф610×1380 Rolling speed(m/min) 180 900 1000 Uncoiler tension(KN) 45 70 70 Recoiler tension(KN) 10-100 14-140 17-170 Pressing method Hydraulic AGC Hydraulic AGC Hydraulic AGC DC speed regulator Siemens Siemens Siemens Electric control Siemens PLC Siemens PLC Siemens PLC Remark：the model and parameter shown in this table are for reference only. The design and production can be tailor-made according to user's requirements.
